2-PIECE BALL VALVE – ISO MOUNTING PAD – STAINLESS STEEL BODY – MODEL C209-SS |
2-PIECE BALL VALVE – ISO MOUNTING PAD – STAINLESS STEEL BODY – MODEL C209-SS

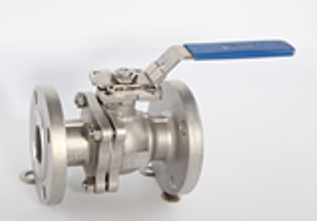

MODEL C209-SS – Full Bore / Two Piece Body – Stainless Steel (CF8) Body and Ball – PTFE Seat – End Connections: ASME B16.5 CL150 RF – Available as Drilled ANSI150 or Undrilled to your specification – Handlever Operated with ISO 5211 Mounting Pad
- FULL BORE / TWO PIECE BODY
- ISO 5211 MOUNTING PAD
- STAINLESS STEEL (CF8) BODY AND BALL
- RPTFE SEATS
- BLOW OUT PROOF STEM
- HANDLEVER WITH LOCKING DEVICE
- 1000 PSI (69 BAR) W.O.G.
- TESTING TO API 598
- FLANGED ASME B16.5 CL 150 RF AND DRILLED ANSI150 OR TO YOUR SPECIFICATIONS
- TEMP RANGE -20 – 200 DEG C
